HPB300/HRB335/HRB400/HRB500 Reinforcement
According to the production process, there are hot rolled steel bars (H) and cold rolled steel bars (C). Hot-rolled steel bars are divided into smooth round steel bars (HPB300) and ribbed steel bars. The common brands of hot rolled ribbed steel bars are HRB400, HRBF400, HRB400E, HRBF400E, HRB500, HRBF500, HRB500E and HRB600. HPB300 (Grade I) is a common steel bar with a diameter of 6-12mm, commonly used in the production of stirrup, wall reinforcement, etc.
HRB335 (Grade II) is a threaded steel with a diameter of 12-25mm, commonly used in bridges, dams, houses and other large and medium-sized concrete structures in the beam, column, shear wall. HRB400 (Grade III) is similar to HRB 335, but is stronger and more expensive. It is often used in special buildings such as villas. HRB500 (Grade IV) is widely used in large prestressed buildings, such as roofs, crane beams, etc.

Contact Us
Product Description
Product Show
Factory Workshop
Certificate Display
Service
FAQ
Customer Visits

Product Description

Mechnical Properties of Steel Rebars
StandardGradeNominal Diameter mmYield Strength MPa (min.)Tensile Strength MPa (min.)Tensile to Yield Ratio (min.)Elongation in 200mm (min.)Elongation (A5) (min.)Agt % (min.)
SASO ASTM A615M 280(40) 12 280 420 N/A 12 N/A N/A

280(40) 14 - 18 280 420 N/A 12 N/A N/A

420(60) 12 - 20 420 620 N/A 9 N/A N/A

420(60) 25 420 620 N/A 8 N/A N/A

420(60) 32 - 40 420 620 N/A 7 N/A N/A

520(75) 12 - 25 520 690 N/A 7 N/A N/A

520(75) 32 - 40 520 690 N/A 6 N/A N/A
SASO ASTM A706M 420(60) 12 - 20 420-540 550 1.25 14 N/A N/A

420(60) 25 - 36 420-540 550 1.25 12 N/A N/A

420(60) 40 420-540 550 1.25 10 N/A N/A
BS 4449 460 B 12 - 40 460 N/A 1.08 N/A 14 5
BS 4449 B500B 12 - 32 500 N/A 1.08 N/A N/A 5
GCC Standard GS06/IS0 6935-2 B400BR 12 - 40 400 N/A 1.08 N/A 14 5

B400BWR 12 - 40 400 N/A 1.08 N/A 14 5

B500BR 12 - 32 500 N/A 1.08 N/A 14 5

B500BWR 12 - 32 500 N/A 1.08 N/A 14 5
Chemical composition of Steel Rebars








StandardGradeChemical composition % (maximum)








C Si Mn S P N Cu C.E.V
SASO ASTM A615M 280/420/520 (40/60/75) ... ... ... ... 0.06 ... ... ...
SASO ASTM A706M 420(60) 0.3 0.50 1.5 0.045 0.035 ... ... 0.55
BS 4449 460 B 0.25 ... ... 0.05 0.05 0.012 ... 0.51
BS 4449 B500B 0.22 ... ... 0.05 0.05 ... 0.80 0.50
GCC Standard GS06/IS0 6935-2  B400BR / B500BR ... ... ... 0.06 0.06 ... ... ...

B400BWR / B500BWR 0.22 0.60 1.60 0.05 0.05 0.012 ... 0.50
Linear Mass and Number of Bars In Bundles
Diameter (mm)Nominal linear mass kg/mTolerance in linear mass (maximum)Tolerance in linear mass (maximum)Tolerance in linear mass (maximum)Number of 12 mlong bars in a bundle of nominal weight of 2 tons.


ASTM A615 BS 4449:2005 GCC Standard GS06/ISO 6935-2/2007
12 0.888 –6% ±4.5% ±6% 188
14 1.210 –6% ±4.5% ±5% 138
16 1.580 –6% ±4.5% ±5% 105
18 2.000 –6% ±4.5% ±5% 84
20 2.470 –6% ±4.5% ±5% 68
22 2.980 –6% ±4.5% ±4% 56
25 3.850 –6% ±4.5% ±4% 44
28 4.830 –6% ±4.5% ±4% 34
32 6.310 –6% ±4.5% ±4% 26
36 7.990 –6% ±4.5% ±4% 21
40 9.870 –6% ±4.5% ±4% 17

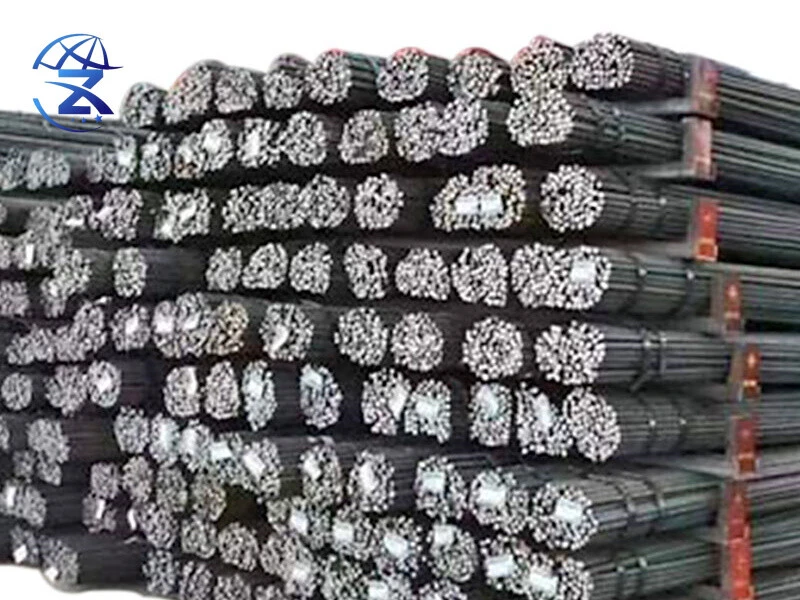

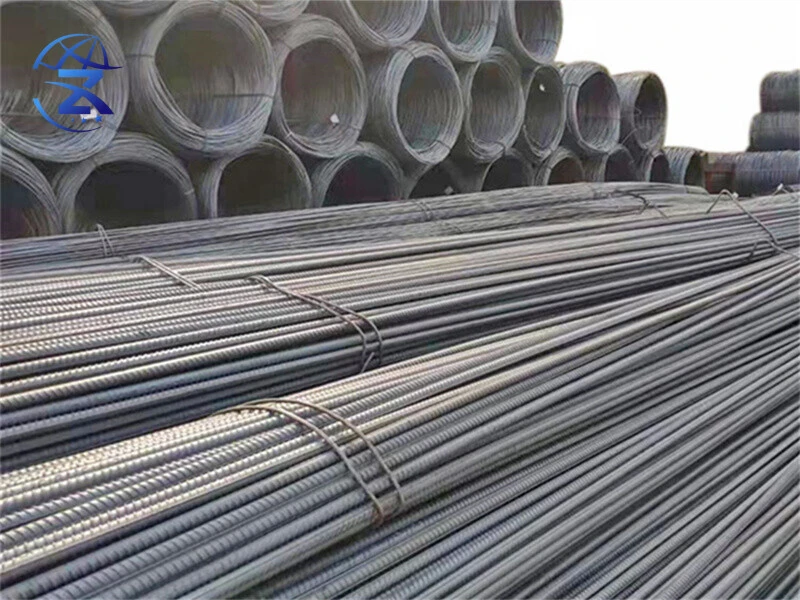

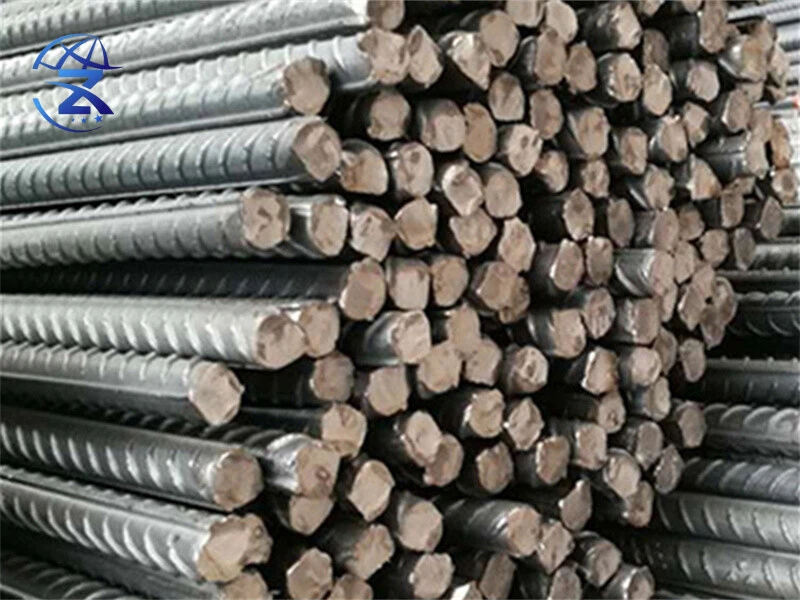

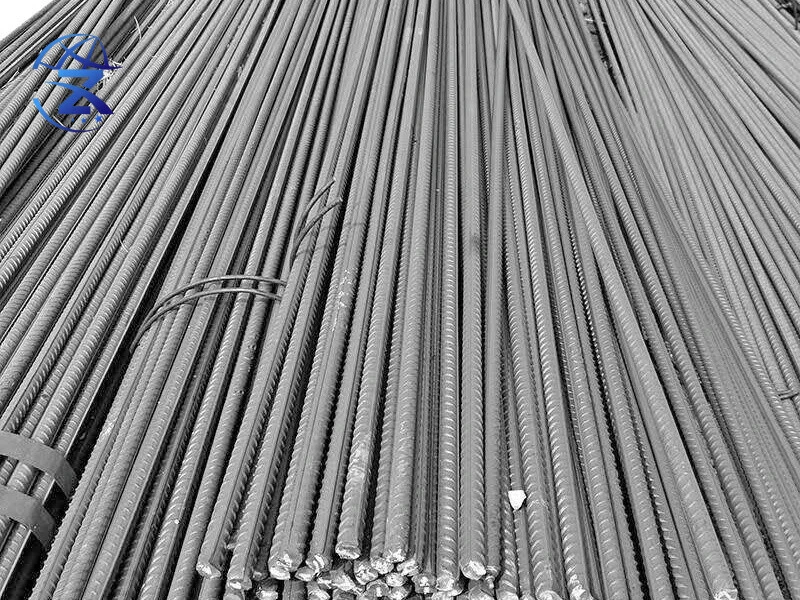

Product Show
